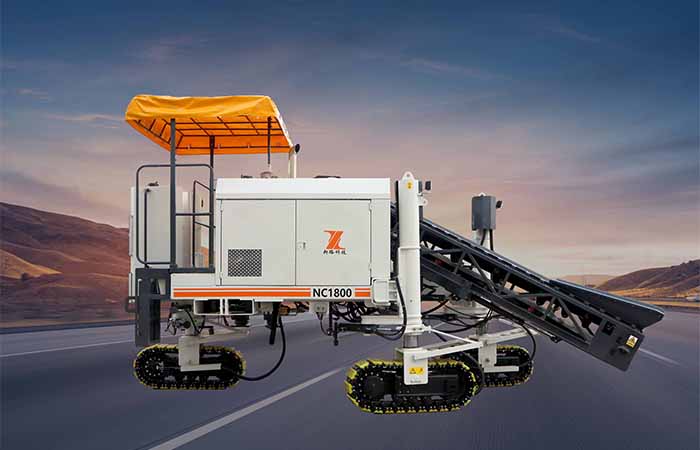

product name:NC1800 slip form paver

Update time:2019-3-28 16:26:56

Product Details



summary

NC1800 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.

The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.


Main technical parameters

1. Basic performance parameters

Maximum side paving height 1800mm

Maximum paving width 3000mm

Paving speed 0~10m/min

Travel speed 0~28m/min

2. Powertrain

Engine model QSB3.9-C130-30 (Dongfeng Cummins)

Engine Emission Country III

Rated power/speed 97kW/2300r/min

Diesel tank capacity 360L

3. Walking system

Three tracks (front two and rear one), hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment

Track width 300mm

Track length 1600mm

Climbing capacity ≥ 25%

4. Outrigger steering lifting device

Three-track steering device is equipped with displacement sensor, precise proportional control, crab walking, cooperative steering, and small turning radius; Outrigger lifting hydraulic proportional control

Minimum turning radius 4600mm

Outrigger hydraulic lifting stroke 1120mm

Outrigger mechanical adjustment stroke 500mm

5. Outrigger swing sliding device

Hydraulic adjustment right front outrigger internal and external swing, left front outrigger extension, rear outrigger extension

The inner and outer swing amplitude of the right front outrigger is 680mm

Telescopic stroke of left front outrigger 1100mm

Telescopic stroke of rear outrigger 710mm

6. Hydraulic system

Imported brand load-sensitive multi-pump hydraulic system, proportional control walking, outrigger steering lifting, vibrating rod

Hydraulic oil cooling large size radiator, forced air cooling

The hydraulic oil filter is equipped with oil suction filter and the filtering accuracy reaches 10 μ m

Return oil filter

Hydraulic oil tank capacity 410L

7. Electrical control system

Humanized design of operation console, human-computer interactive control screen, clear graphical identification symbols, 24V voltage power supply system

Configure two longitudinal slope sensors, one transverse slope sensor and two steering sensors

The longitudinal slope, cross slope and steering adopt electronic automatic control, and the sensor and controller adopt CAN bus communication

Equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device

8. Auger conveyor

The hydraulic motor drives the reducer, and the tilt angle and telescopic hydraulic adjustment

Twister speed 0~70r/min

The size of the auger feeding device is 4400mm long, and the blade diameter is 420mm

9. Vibrating compaction system

Imported hydraulic vibrating rod, with independent adjustable vibration frequency and proportional control

Vibrating rod interface 8 (optional 10)

Vibrating rod frequency 0~200Hz

10. High-pressure flushing device

Hydraulically driven high pressure ceramic plunger pump, equipped with coil device and high pressure washing water gun

Water tank capacity 310L

11. Mold and mold fixture

According to the working conditions, various molds can be customized to meet the requirements of right paving and middle paving

Hydraulic horizontal stroke of mold fixture 1000mm

Hydraulic vertical stroke of mold fixture (double oil cylinder) 360mm

Mechanical vertical stroke of mold fixture 240mm

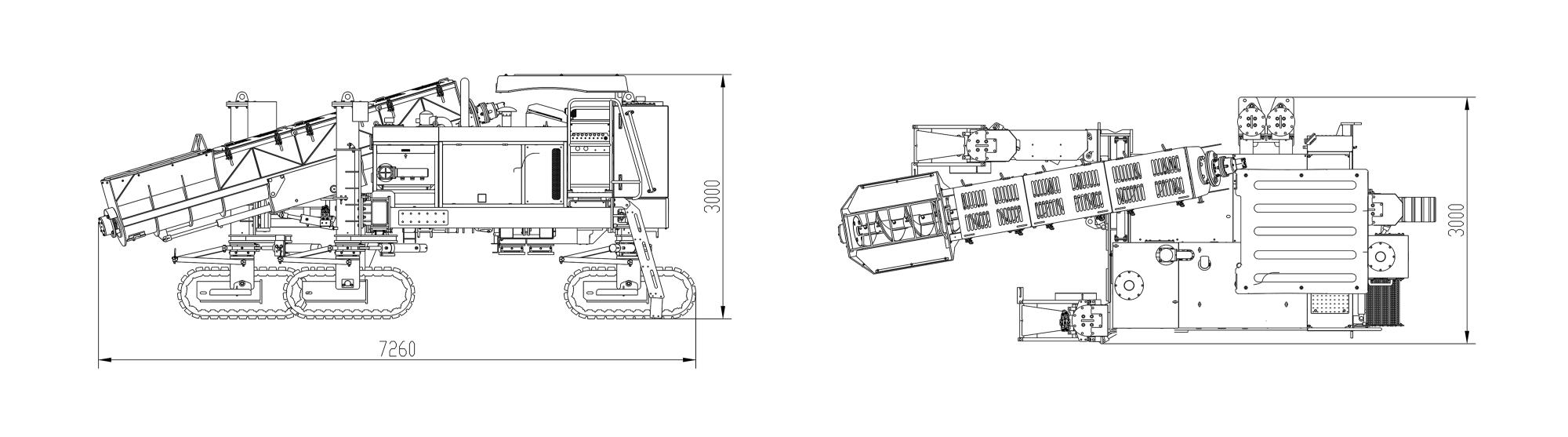

12. Overall dimension and weight (transportation status)

Transport dimension (long × wide × High) (7260 × three thousand × 3000)mm

Operating Weight 15500Kg
